Vertical Turning Lathe (VTL): Complete Guide, Types, Applications & Used VTL Buying Tips
Machining massive, circular components is a nightmare if you are using the wrong gear. When a part weighs several tons and spans a few meters, mounting it horizontally is asking for trouble. Gravity pulls at the center, causing structural sagging and uneven wear that ruins your tolerances. This is exactly where the vertical turning lathe becomes the backbone of any heavy engineering facility.
A vertical lathe machine solves the scale problem by simply flipping the process on its head. Instead of a workpiece hanging off a spindle, it sits flat on a massive rotating table. This shift in design makes it possible to shape heavy rings, flanges, and casings that a standard lathe just couldn’t handle. Whether you are hunting for a fresh setup or a reliable VTL machine to expand your shop’s capacity, you need to know how these heavy-hitters operate to get the precision your clients demand.
What Is a Vertical Turning Lathe?

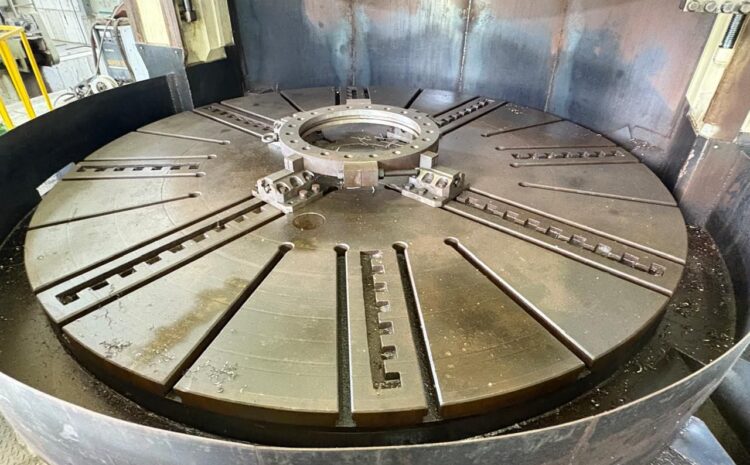

A vertical turning lathe is essentially a high-precision industrial turntable. While a traditional lathe holds a part like a horizontal spit, the vertical turning lathe machine keeps the spindle vertical. The workpiece lies flat on a large, rotating circular table. Think of it like a potter’s wheel, but engineered to handle ten tons of forged steel.
The logic behind this setup is simple: size. A vertical lathe machine is the go-to for parts that are wider than they are long. We are talking about components ranging from one meter to over twenty meters in diameter. By sitting the part flat, the weight is dumped directly into the machine’s foundation. This prevents the “deflection” or bending you get when a heavy part is held at only one or two points horizontally. In heavy industry, the VTL machine isn’t just a tool; it is the only way to turn parts that are too awkward for anything else.
How a Vertical Turning Lathe Works
A vertical turning lathe works by letting physics do the heavy lifting. You secure the workpiece to a horizontal rotating table, which acts as the main axis. As that table spins, cutting tools mounted on a vertical ram or cross-rail move into the metal to peel away material.
The biggest technical win for a vertical lathe machine is how it handles gravity. In horizontal machining, gravity is the enemy, pulling at the part and causing misalignments. In VTL, gravity is your partner. It helps seat the workpiece firmly against the table, providing a level of natural stability that leads to better surface finishes and tighter accuracy on massive diameters.
Most modern shops now lean on a VTL cnc system to run these machines. These setups use computer programs to dictate table speed and tool paths with extreme precision. This removes the “guesswork” and human error from the equation, ensuring that even the most complex industrial shapes are carved out perfectly every single time.
Types of Vertical Turning Lathes
Choosing the right rig depends on your production volume and how much “hands-on” control you actually want.
1. CNC Vertical Turning Lathe
The cnc vertical turning lathe is the peak of workshop efficiency. By using computer numerical control, a cnc VTL machine executes complex patterns with almost zero operator input once the program starts. This is a lifesaver for industries that need high repeatability and can’t afford a single scrap part.
The real draw of a VTL cnc is its versatility. You aren’t just turning; many can handle boring and even light milling in one setup. For high-volume contracts or intricate geometries, the investment in a CNC system pays for itself through faster cycles and less wasted material.
2. Conventional / Manual Vertical Turning Lathe
Even with the digital revolution, the manual VTL machine isn’t going anywhere. These are the “old-school” workhorses found in repair shops and job-work facilities. They rely on the hands-on skill of a veteran machinist to dial in the cuts.
A manual vertical lathe machine is usually the best bet for one-off repairs or low-volume jobs where writing a complex CNC program is a waste of time. They are tougher, easier to fix, and offer a much lower entry price for shops that don’t need 24/7 automation.
Applications of Vertical Turning Lathe in Heavy Engineering
The vertical turning lathe is the invisible force behind massive infrastructure. Because it handles wide diameters so effortlessly, you’ll see it used across every heavy-duty sector.
- Power Generation: For machining turbine housings and huge rotor hubs.
- Oil & Gas: Cutting the massive flanges and valves that have to hold up under extreme pipeline pressure.
- Wind Energy: Producing the enormous bearing rings and gear blanks used in wind turbine nacelles.
- Railways: Turning heavy train wheels and brake discs that require absolute circularity.
Typical parts coming off a VTL machine include industrial rings, casings, and pressure vessel ends. These are components where a tiny error isn’t just a mistake; it’s a potential mechanical disaster.
Key Advantages of Vertical Turning Lathes
Why bother with a vertical turning lathe instead of just a massive horizontal one? It comes down to basic workshop reality.
Stability is the big one. Since the part is supported by the table’s entire surface, it won’t vibrate or “drop” out of alignment. This gives you higher machining accuracy, especially on the outer edges of a huge diameter.
Then there is the loading factor. It is much easier (and safer) for a crane operator to drop a heavy part onto a flat table than to wiggle it into a horizontal chuck. This protects your workers and speeds up your setup times. Plus, a vertical lathe machine usually takes up less floor space than a horizontal machine of the same capacity, which is a major win for crowded shops.
Why Choose a Used VTL Machine?
Let’s be honest: new machines are expensive and the lead times can be a year or more. A used vertical turning lathe machine is a strategic shortcut to high-end capacity without the crippling price tag.
At EngiMach, we’ve seen well-maintained VTLs serve companies for thirty years or more. A major perk of buying used is speed. While a new factory order sits in a queue, a used vertical turning lathe machine can be inspected, shipped, and making you money in weeks.
For shops trying to scale up or bid on bigger contracts, a vertical turning lathe from the secondary market offers a much faster return on investment. If the machine has been vetted and tested, it will hold tolerances just as well as a brand-new model, making it a very smart move for budget-conscious engineers.
Factors Affecting VTL Price
The vertical turning lathe price isn’t just about the age of the iron. The biggest cost driver is the table size and weight capacity. A 1-meter table is a completely different investment than a 5-meter monster.
Tech levels also shift the needle. A cnc VTL costs more than a manual one because you’re paying for the electronics, motors, and software. Brand pedigree matters too; machines from Japan, Germany, or Italy usually command a higher VTL price because they are built to be rebuilt.
When you look at a used vertical turning lathe machine, check the guideways and the CNC controller’s age. If the parts are still available and the “bones” are solid, the machine is worth the investment. Always factor in the total cost, including installation, rather than just the sticker price.
CNC Vertical Turning Lathe vs Conventional VTL
Which one fits your floor? It depends on what you’re making.
| Feature | CNC Vertical Turning Lathe | Conventional VTL |
| Accuracy | Micron-precise | Operator dependent |
| Production | Great for 24/7 runs | Best for job-work/repairs |
| Skill | Needs a programmer | Needs a machinist |
| Maintenance | Tech-heavy | Mostly mechanical |
A cnc vertical turning lathe machine is a beast for speed, but the VTL cnc requires a bigger upfront spend and a different kind of staff. For many job shops, a manual machine is a reliable “legacy” tool that gets the job done without needing a single line of code.
What to Check Before Buying a Used Vertical Turning Lathe
Buying a used vertical turning lathe machine is a major play. You have to do the legwork.
Start with the machine’s geometry. If that table isn’t dead-level or the ram has a tilt, you’ll never hit your tolerances. For a cnc VT, make sure the control system isn’t a “dinosaur”—you need to be able to find spares.
Listen to the bearings. Any growling from the spindle or table during a test run is a bad sign. Finally, check the guideway wear. If the tracks are scored, the tool will chatter, and your surface finish will look like a washboard. A solid vertical turning lathe machine should come with some service history so you know it was actually greased and cared for.
Conclusion
The vertical turning lathe is the undisputed king of heavy-duty machining. By making gravity work for you, it allows for a level of precision on massive parts that horizontal machines just can’t touch. Whether you need a high-speed VTL cnc for a big contract or a manual unit for custom work, these machines are built to last.
Opting for a used VTL machine is a brilliant way to gain massive industrial power without the “new machine” debt. With a proper inspection and the right technical specs, you can find a machine that stays accurate and productive for decades.
FAQs
1. What is a vertical turning lathe used for?
A vertical turning lathe machines massive, round parts like flanges, rings, and casings. It’s the best choice when the workpiece is too heavy or wide for a standard horizontal lathe.
2. What is the difference between a vertical turning lathe and a horizontal lathe?
In a vertical turning lathe, the part sits flat on a rotating table. In a horizontal lathe, it hangs sideways. The vertical setup is much more stable for heavy, wide components.
3. What is a CNC vertical turning lathe?
A cnc vertical turning lathe is an automated VTL. It uses a computer to control the cutting, which means higher precision and faster production for complex parts.
4. Which industries use VTL machines?
You’ll find vertical turning lathe machines in power plants, oil & gas facilities, wind turbine manufacturing, and railway workshops.
5. What factors affect the VTL price?
The price is driven by the table size, whether it’s CNC or manual, the brand, and the overall condition of the spindle and guideways.
6. Is buying a used VTL machine a good option?
Absolutely. A used vertical turning lathe machine is a cost-effective way to get heavy-duty capacity fast, as long as it has been properly inspected.
7. What should be checked before buying a used VTL?
Check the table alignment, the condition of the CNC electronics, the spindle bearings, and any wear on the guideways before you sign the check.
