Kafo BMC-4122 (2017 year)

Kafo BMC-4122 (2017 year)


  • Make: Kafo, Taiwan
  • Model: BMC-4122
  • Year: Dec 2017
  • X / Y / Z axis: 4100 / 2200 / 900 mm

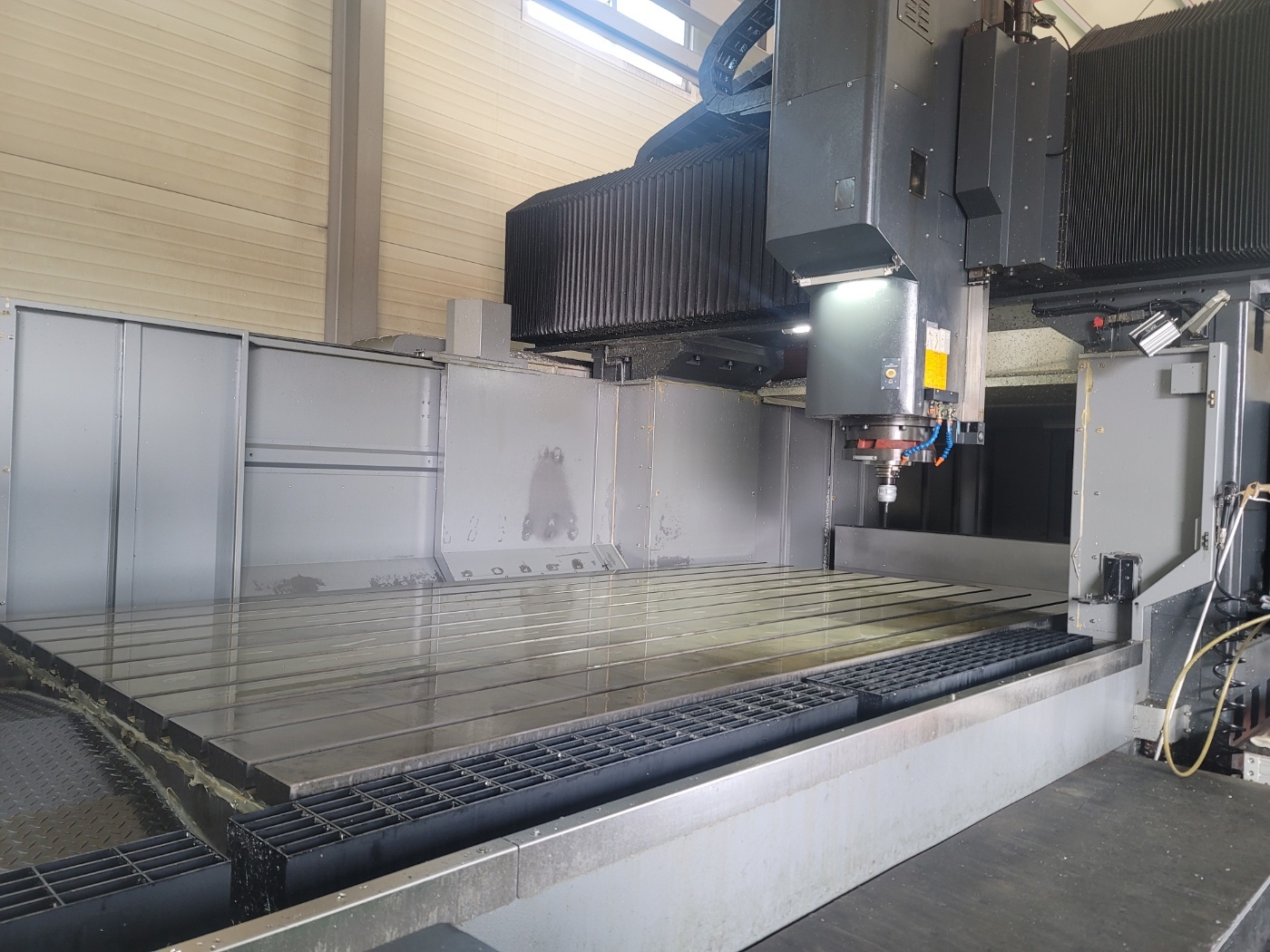

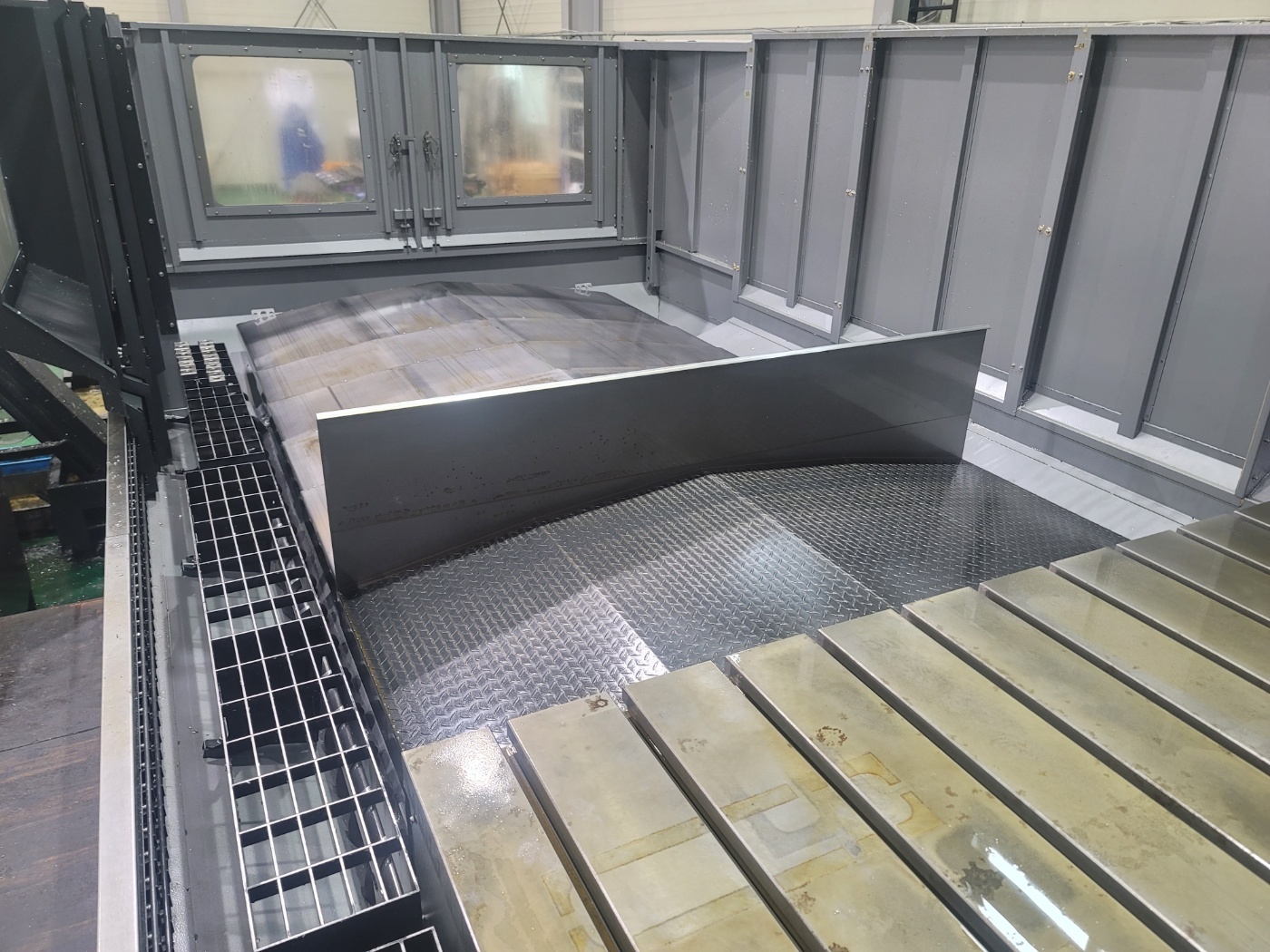

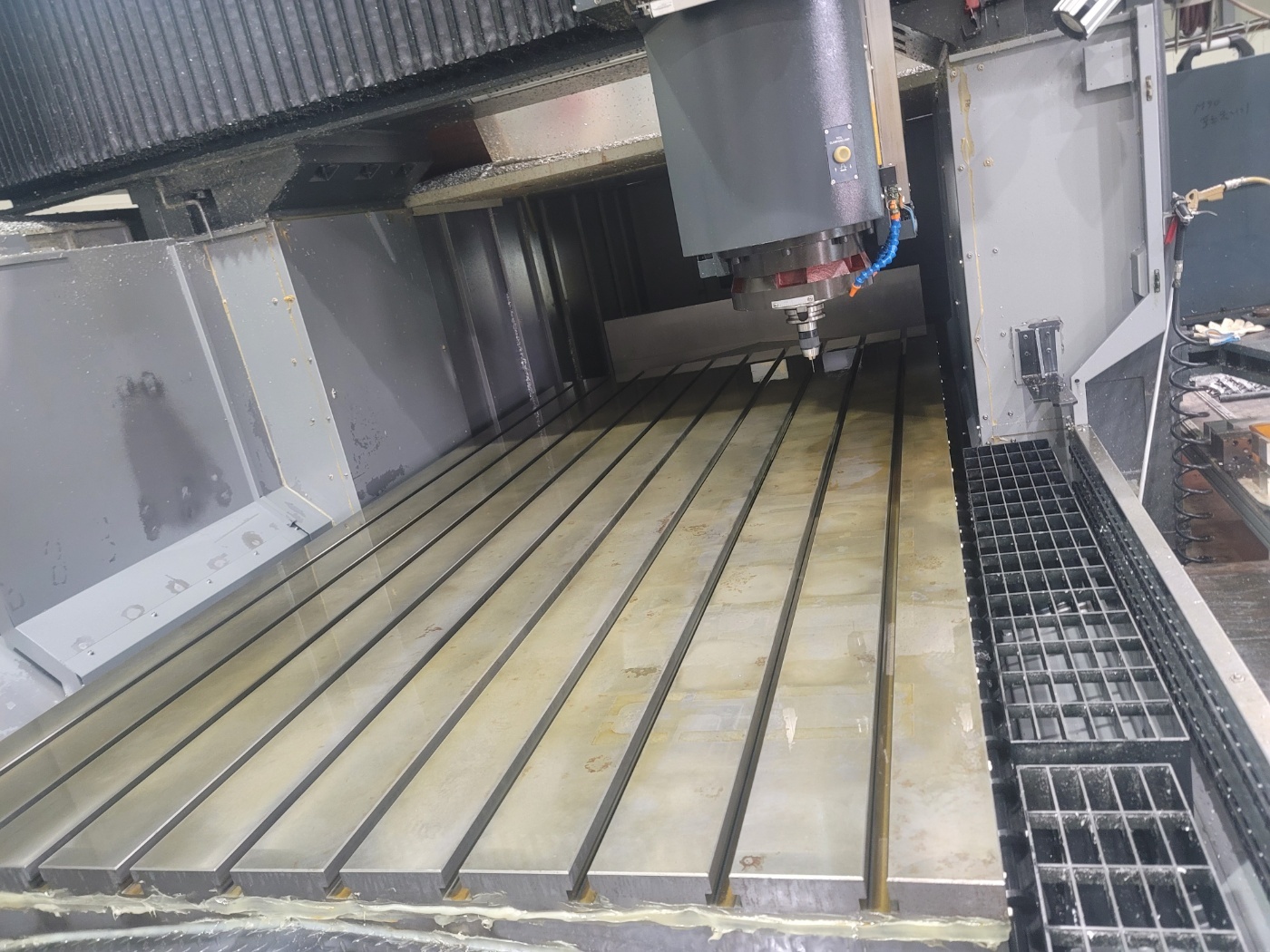

  • Table size: 4000 x 2100 mm
  • Max. Table load: 17 ton
  • Distance between columns: 2300 mm
  • Distance from table top to spindle nose: 200 ~ 1100 mm
  • Spindle speed: 6000 RPM (Gear)

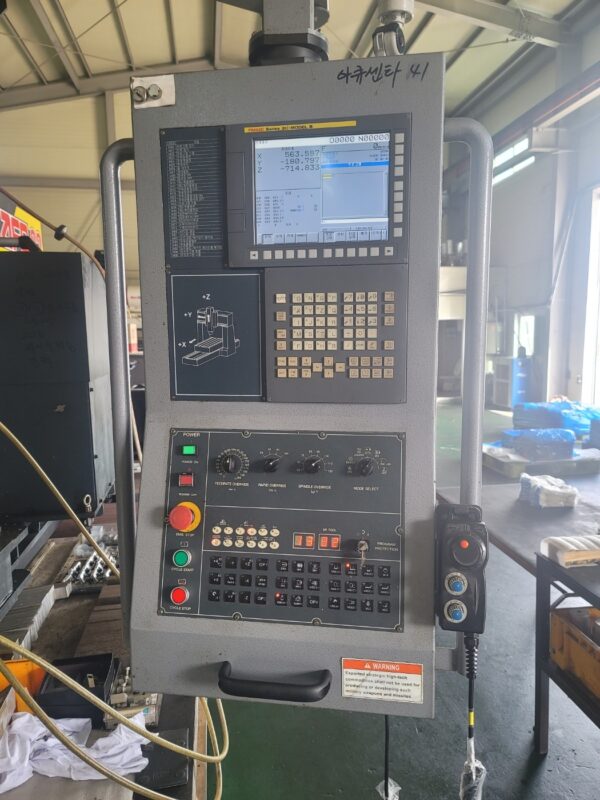

  • With Fanuc 31i-MB CNC

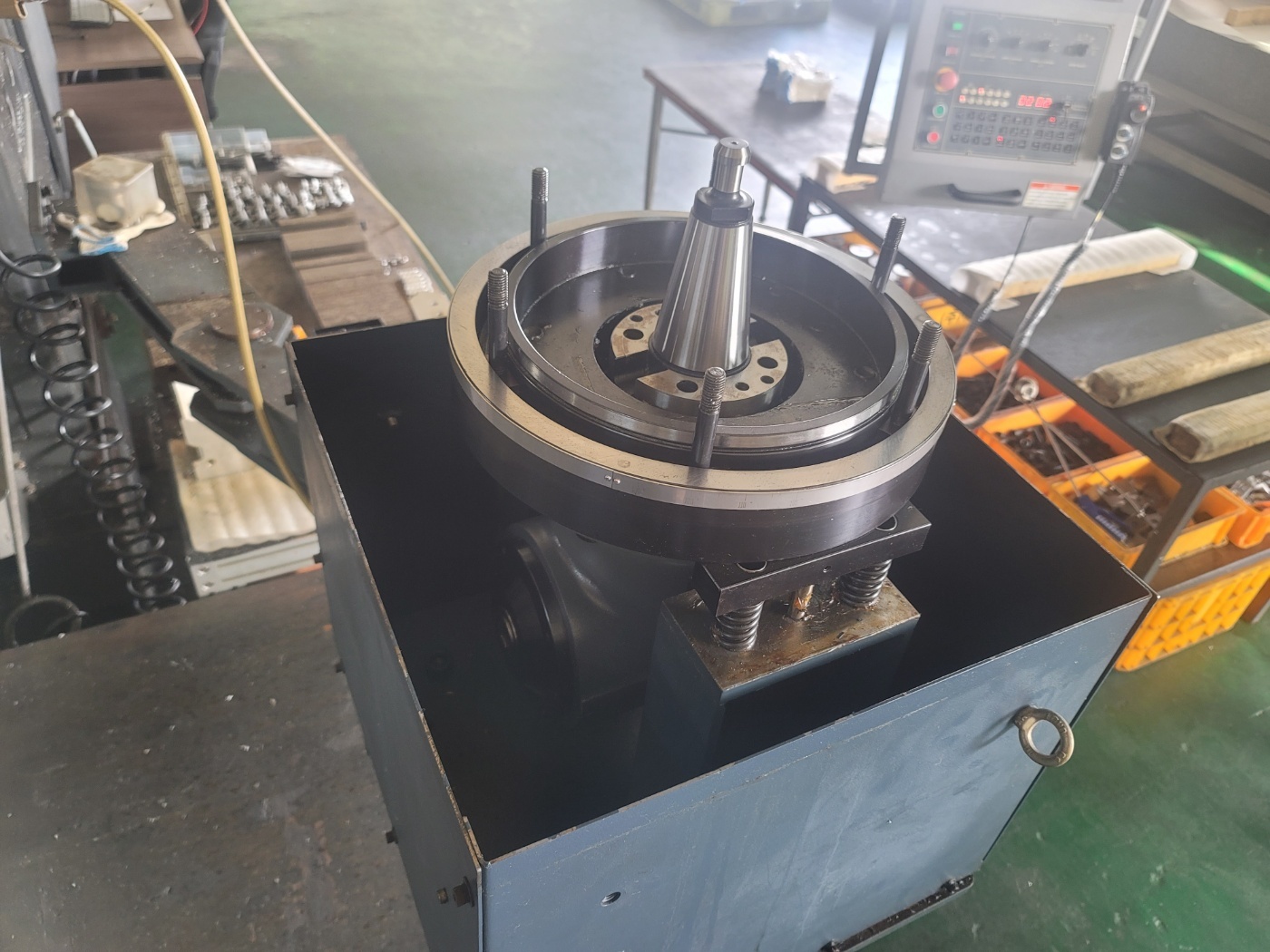

  • With Angle Head
  • With Chip Conveyor
  • With AICC2 (600 blocks)
  • With Spindle Oil Cooler
  • With Auto Power Off
  • LM Guideways – X/Y axis
  • Checkout Hartford Kafo BMC-4122 (2017 year) Machine in Action

Ideal Applications

  • Large Mold & Die Manufacturing – Suitable for precision machining of large molds for automotive, aerospace, and consumer products.
  • Heavy-Duty Part Machining – Ideal for machining large metal components (steel, cast iron, aluminum) used in construction machinery, energy equipment, and shipbuilding.
  • Precision Aerospace & Defense Components – Effective for producing long, complex, and high-accuracy structural parts.
