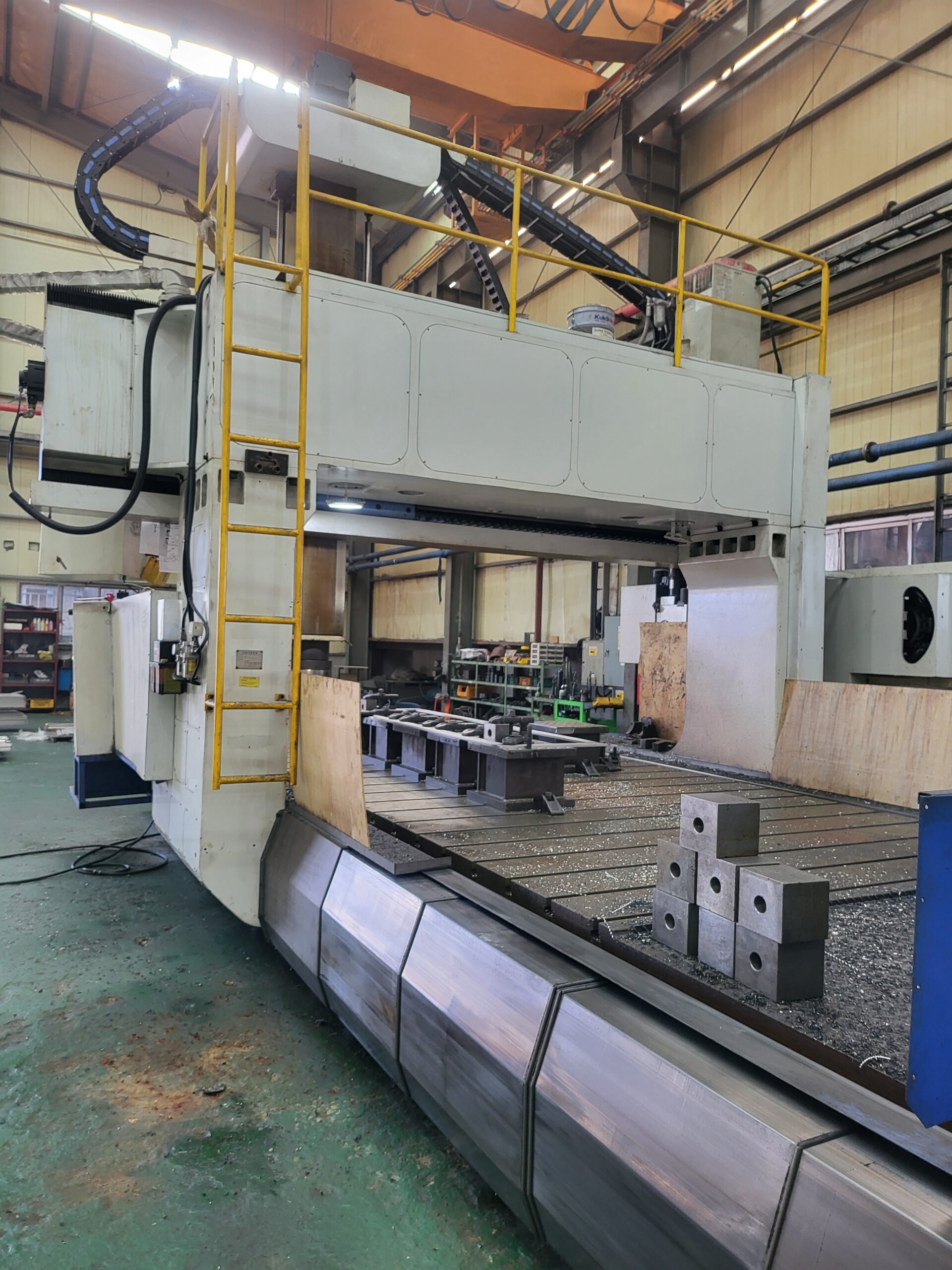

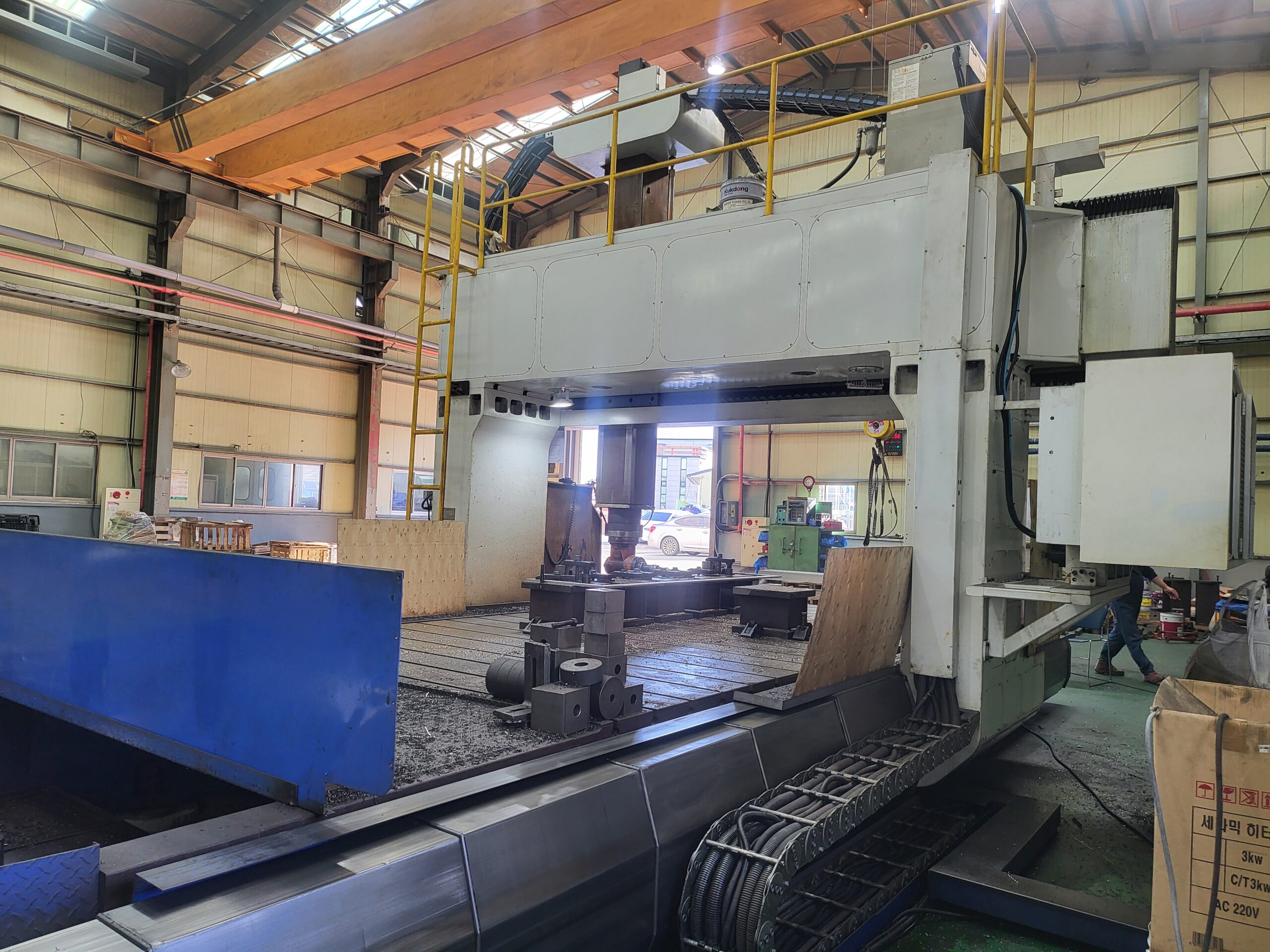

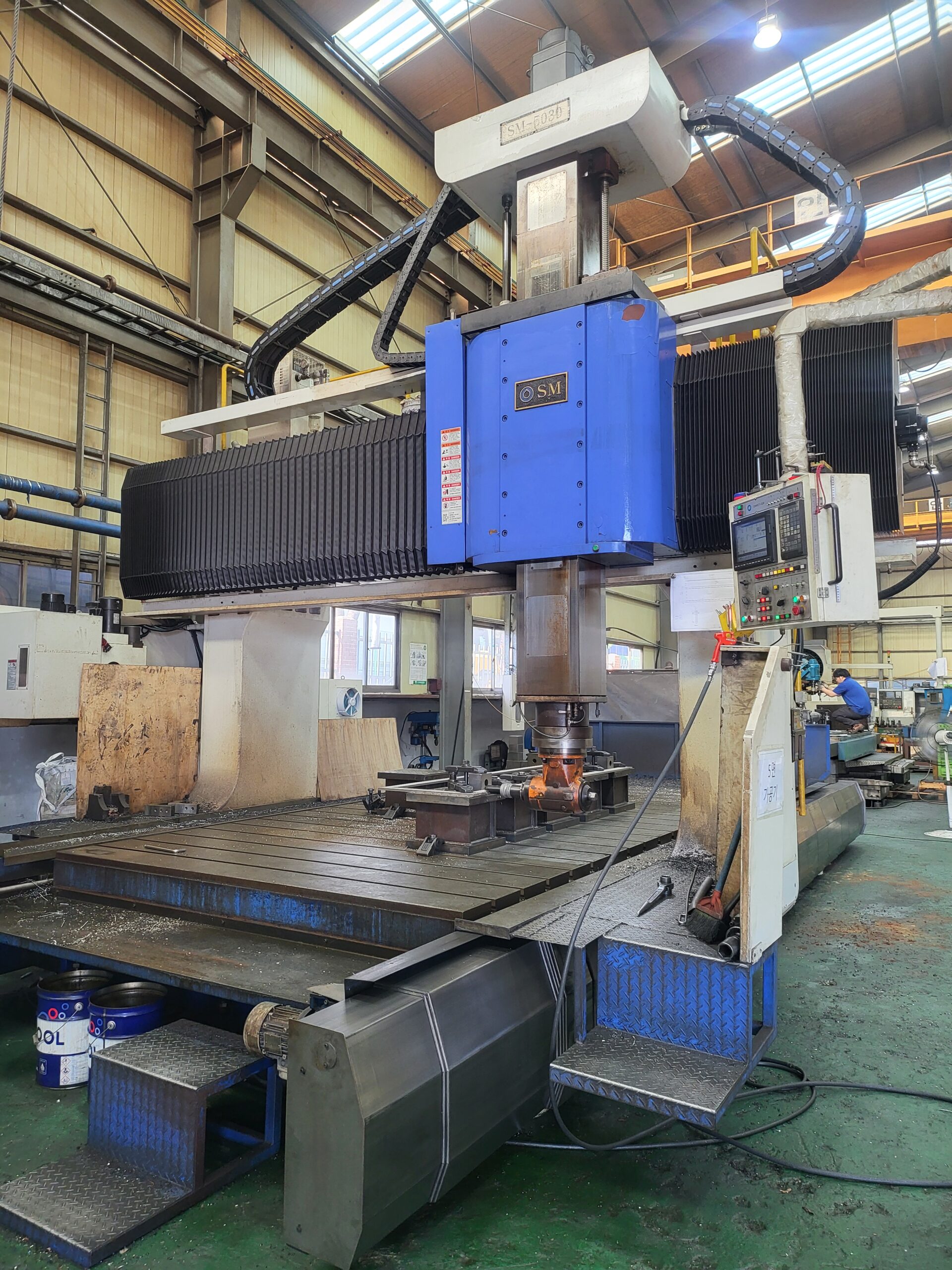

Gantry Type – SM (2019 year)

Gantry Type - SM (2019 year)


  • Make: SM, Korea
  • Model: SM-5030
  • Year: 2019

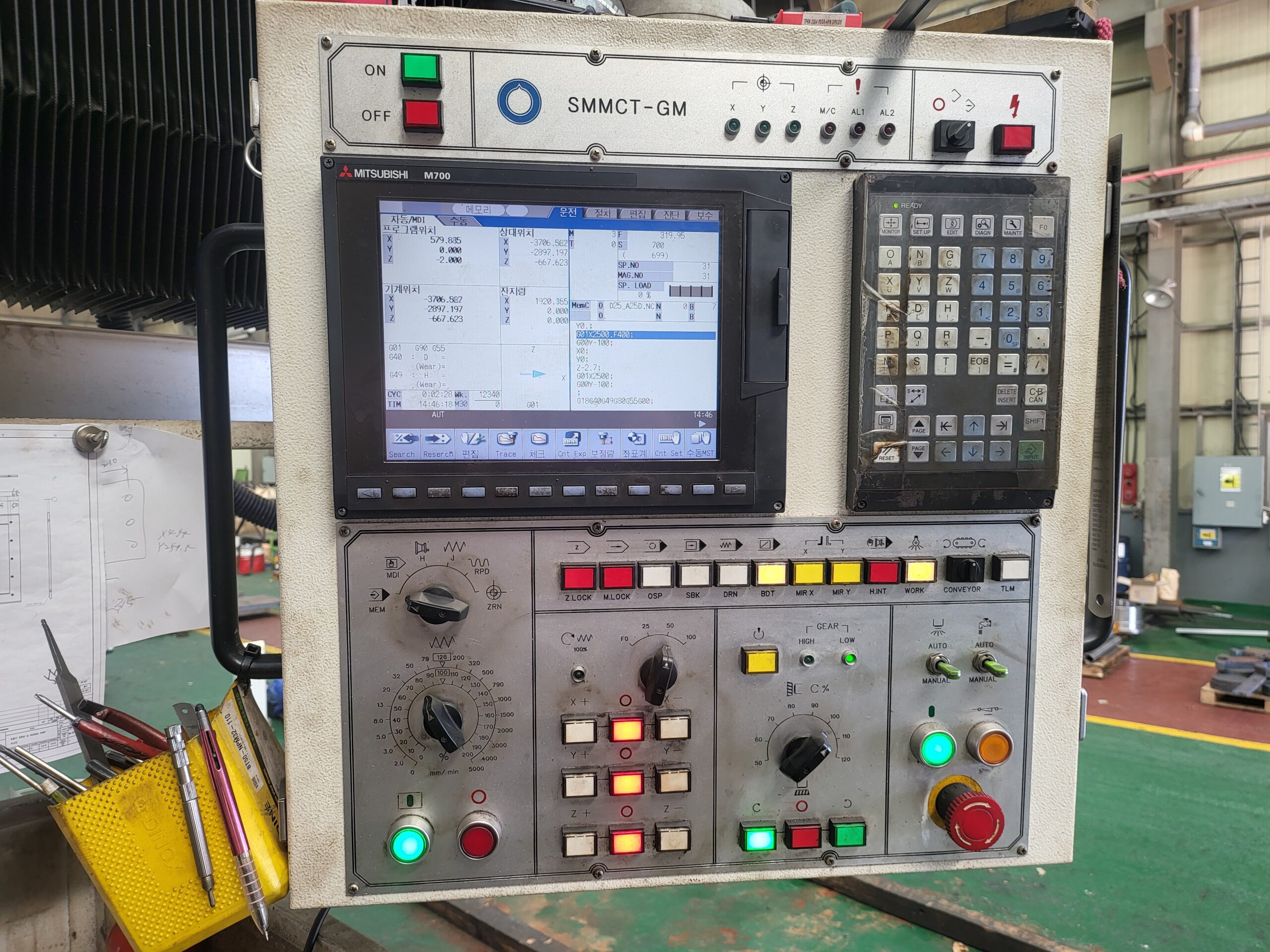

  • CNC: Mitsubishi M700
  • Table size: 5000 x 2500 mm
  • X / Y / Z axis: 5200 / 3500 / 1100 mm
  • Distance between columns: 3000 mm
  • Distance from table top to spindle nose: 1200 mm
  • Spindle speed: 6000 RPM
  • Spindle motor: 22/26 kW
  • Spindle taper: BT-50

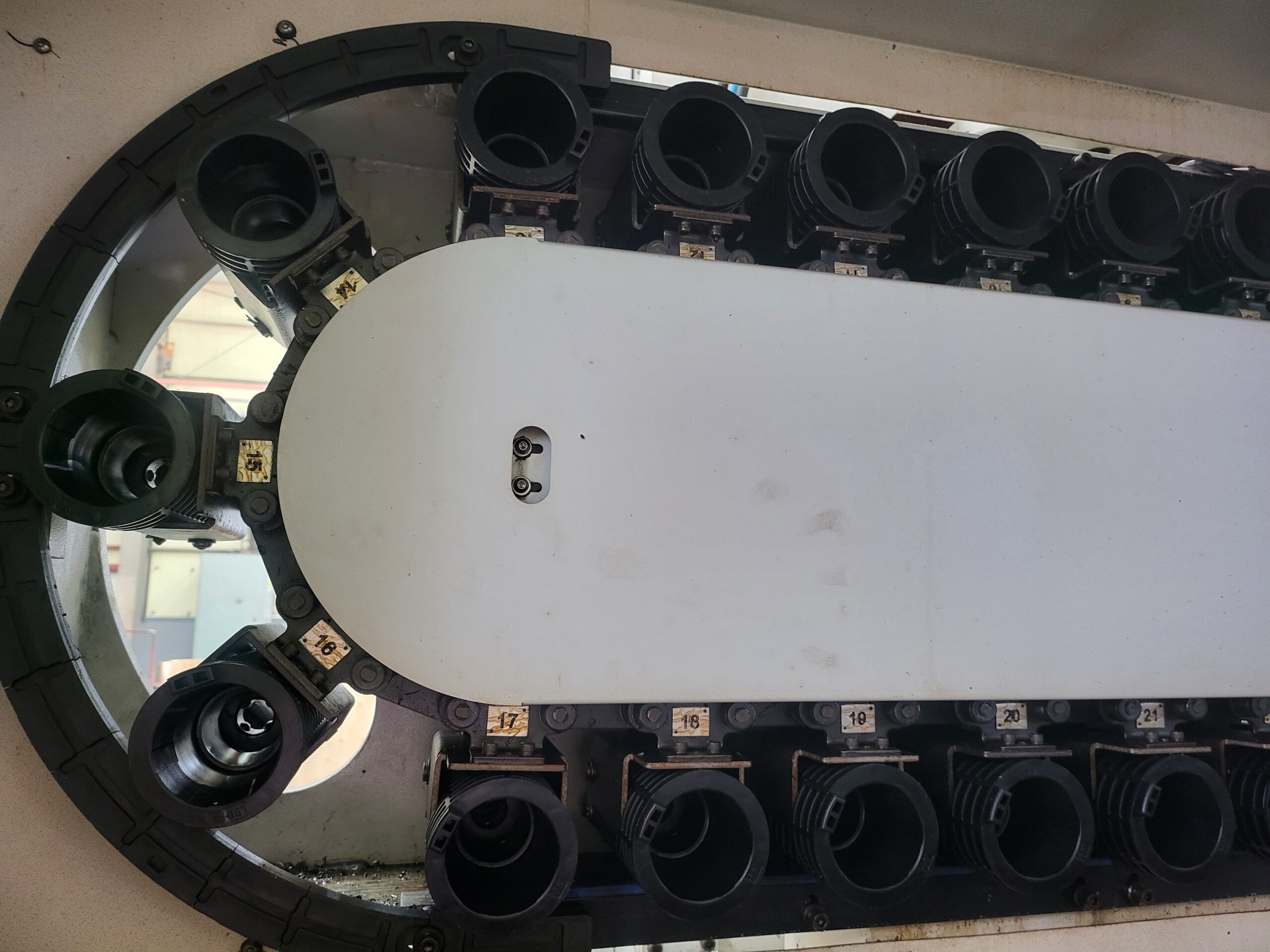

  • ATC: 40 Positions

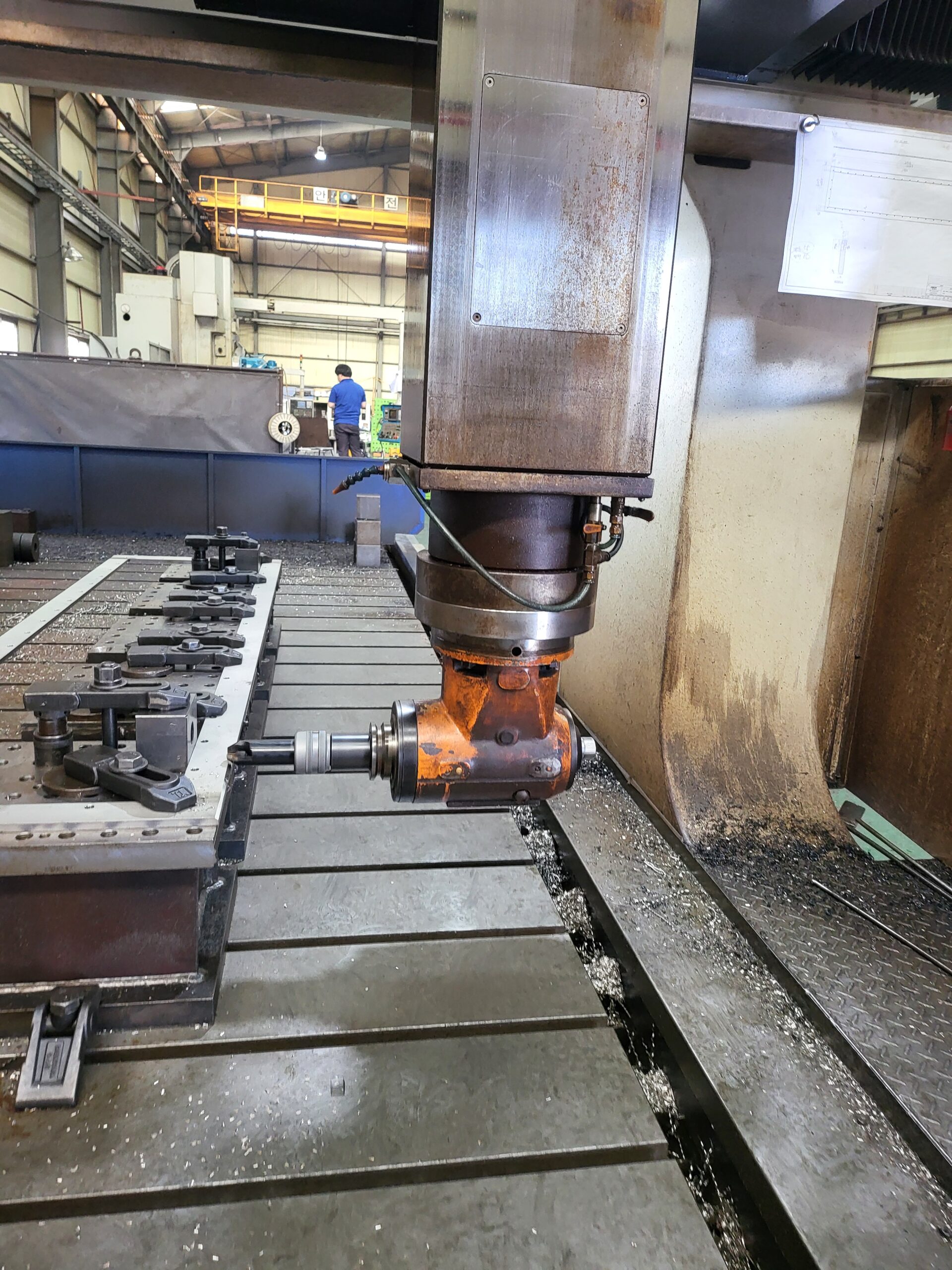

  • Angle Milling Head: Manual Type
  • X axis: LM type
  • Y & Z axis: Box type
  • Checkout Gantry Type – SM (2019 year)) Machine in Action

Ideal Applications

  • Large Mold & Die Manufacturing – Suitable for precision machining of large molds for automotive, aerospace, and consumer products.
  • Heavy-Duty Part Machining – Ideal for machining large metal components (steel, cast iron, aluminum) used in construction machinery, energy equipment, and shipbuilding.
  • Precision Aerospace & Defense Components – Effective for producing long, complex, and high-accuracy structural parts.
