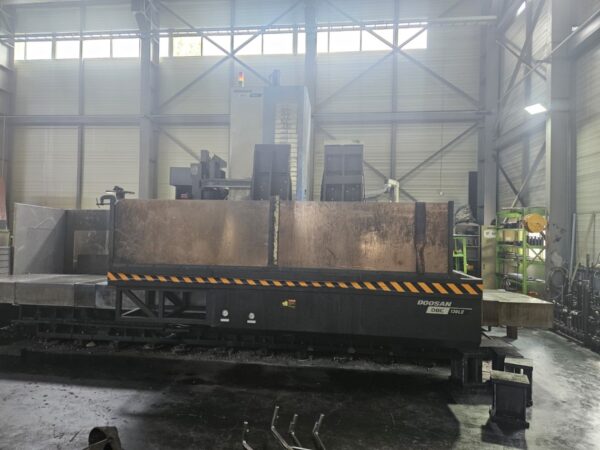

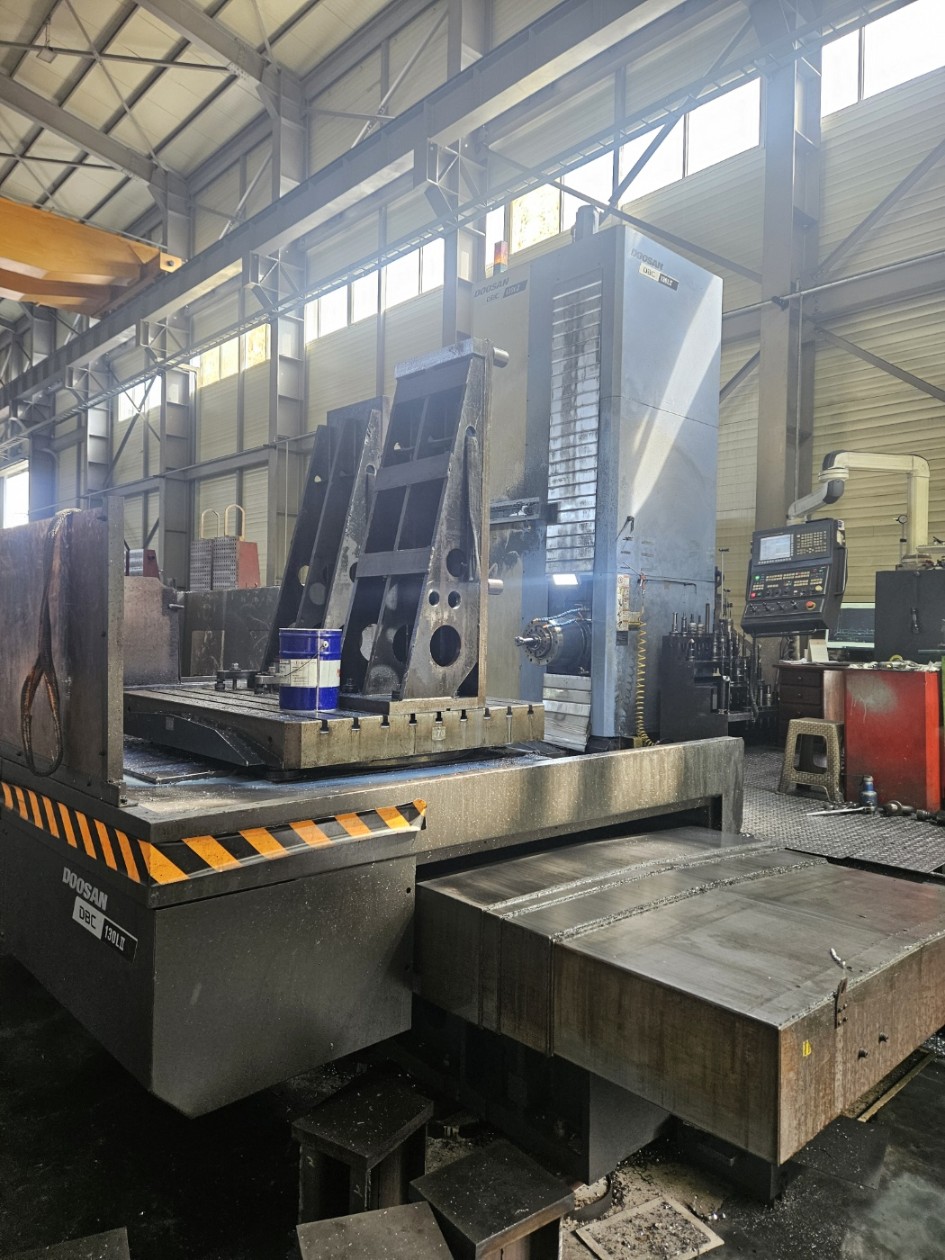

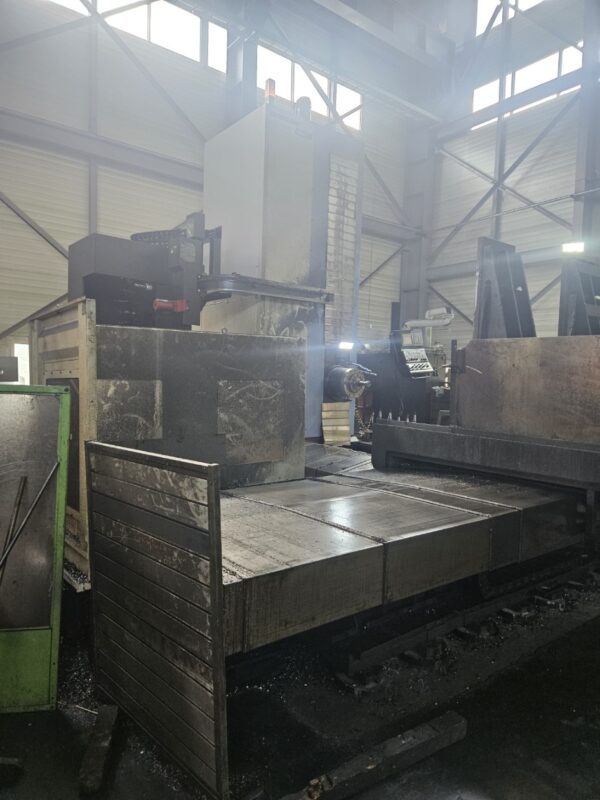

CNC HBM – Doosan DBC130LII (2017 year)

Key Features & Specifications

• Make: Doosan, Korea

• Model: DBC-130L II

• Year: 2017

• Spindle dia: 130 mm

• X travel: 4000 mm

• Y travel: 2500 mm

• Z travel: 2000 mm

• W travel: 700 mm

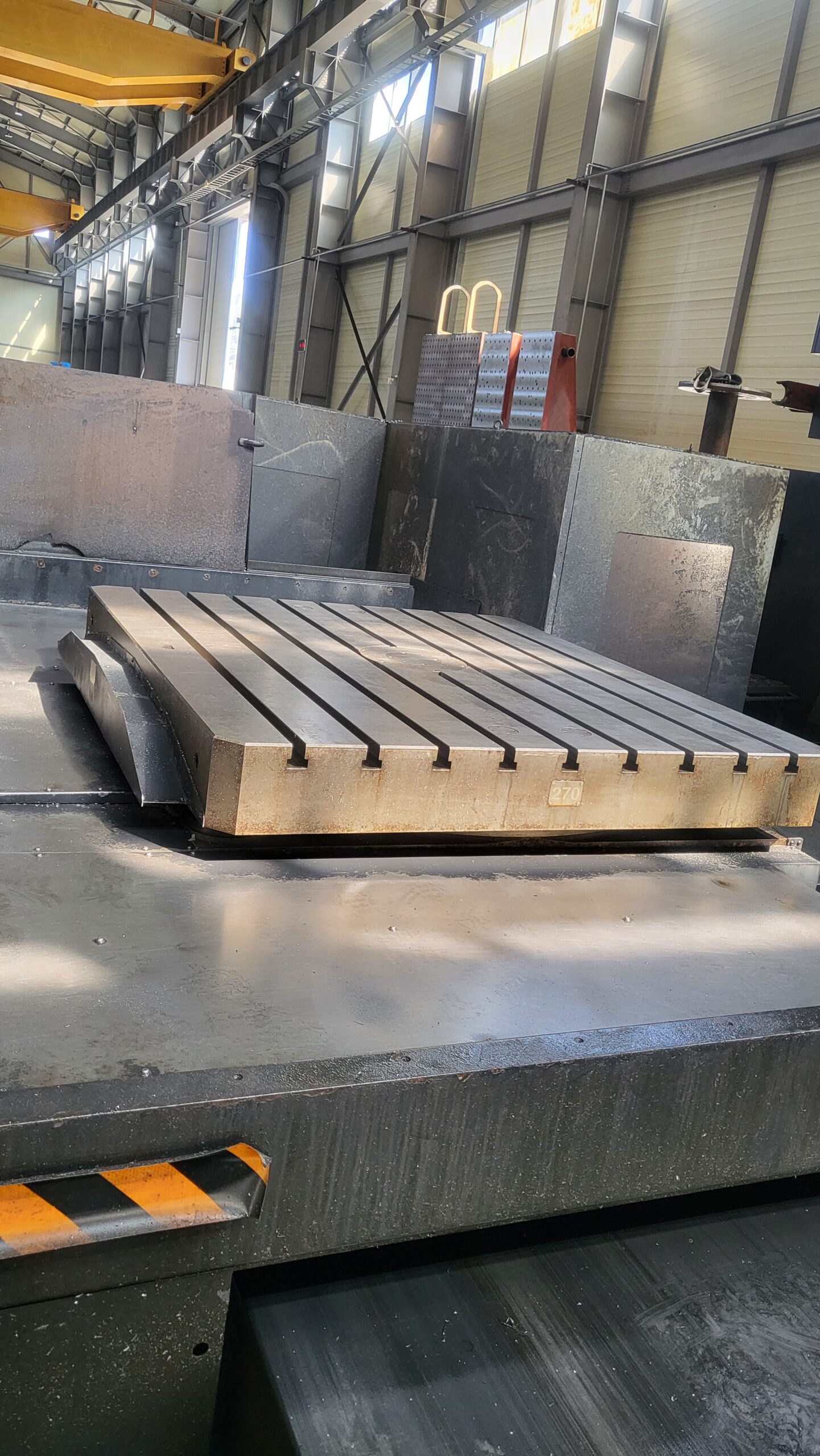

• Table size: 1600 x 1800 mm

• Table load: 15 Ton

• Spindle speed: 10 ~ 2500 RPM

• Spindle motor: 22/26 kW

• Spindle taper: BT50

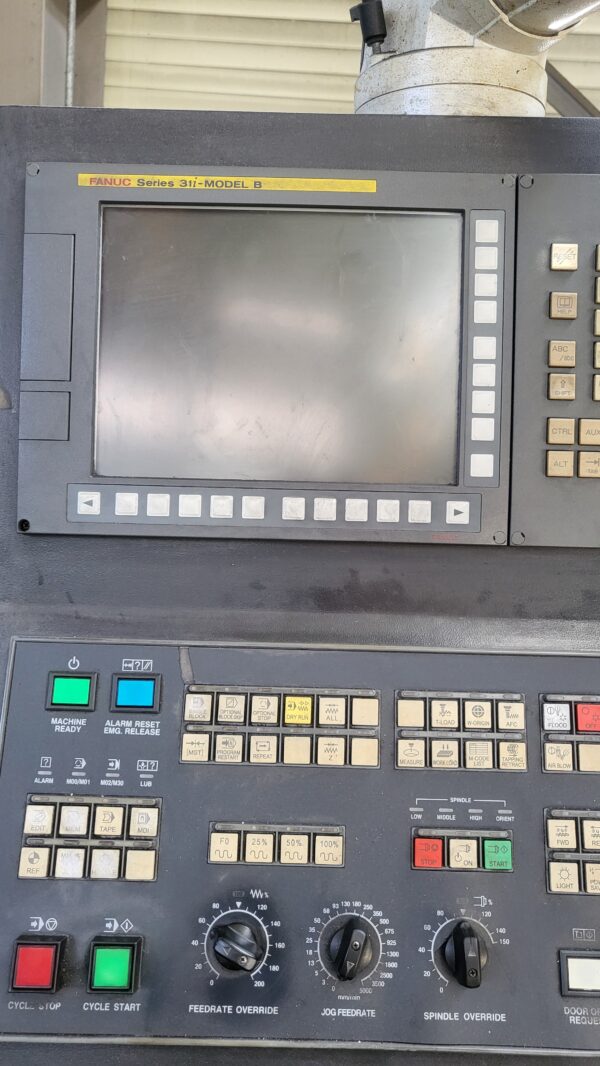

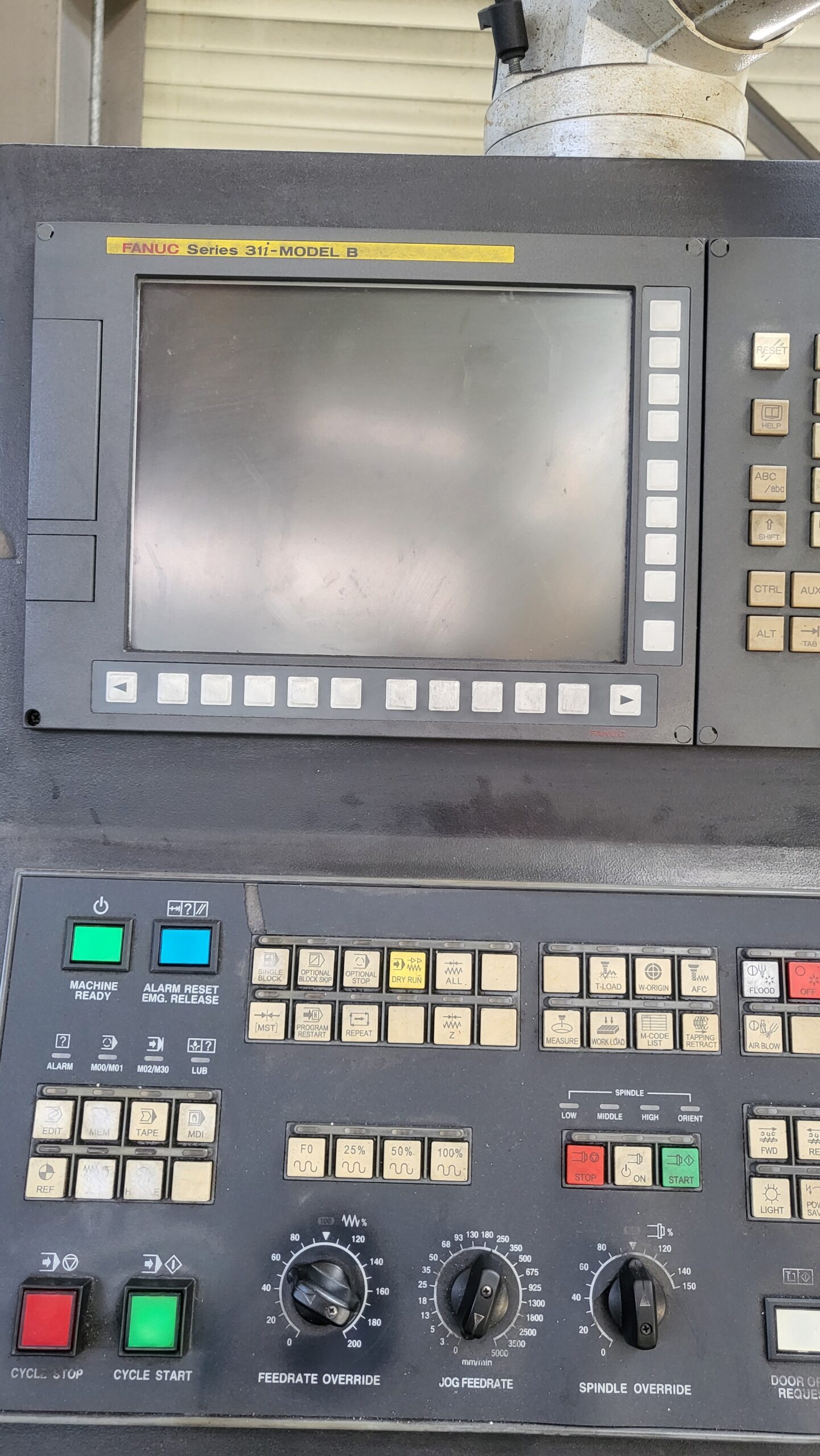

• With Fanuc 31i-MB

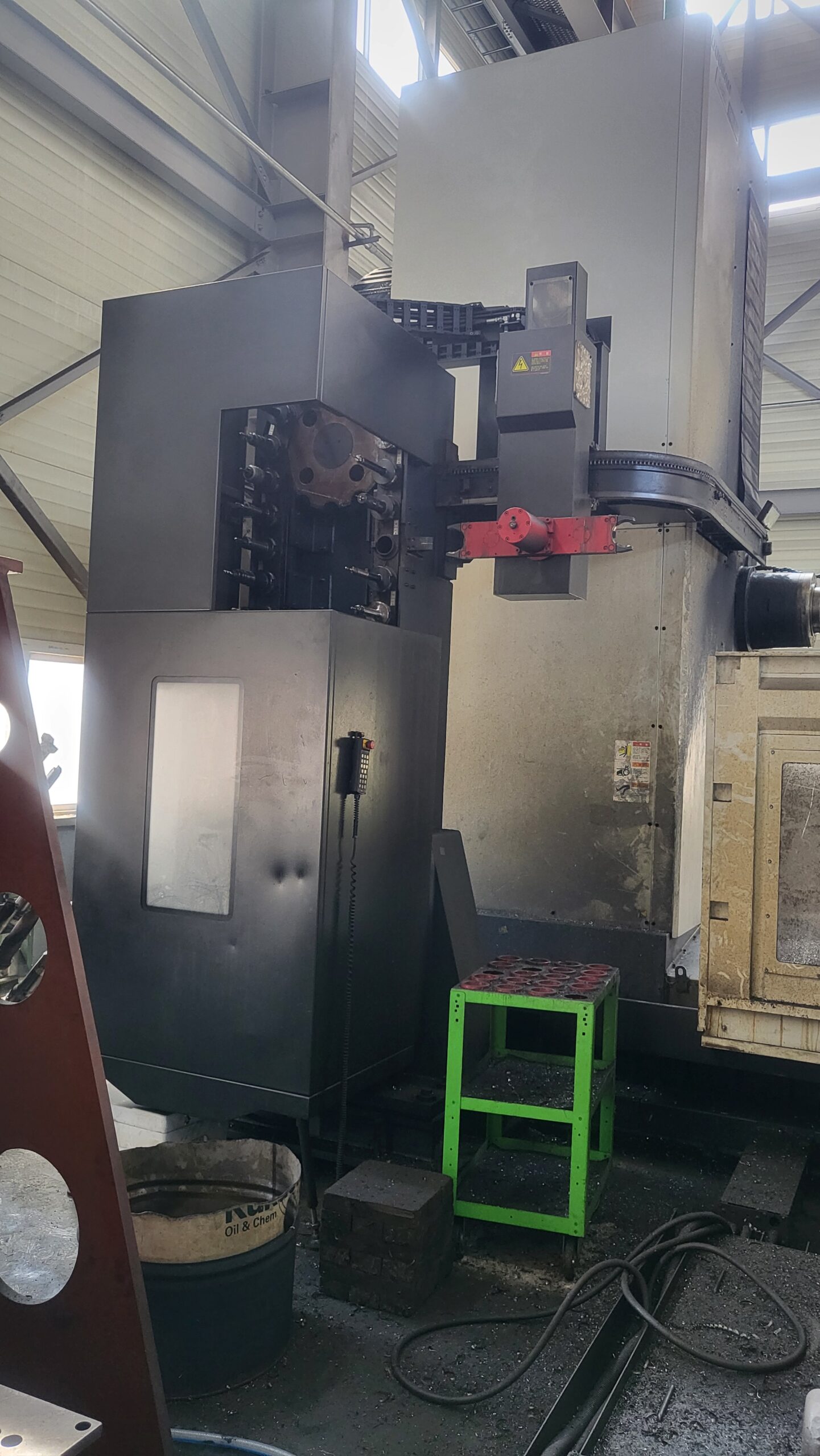

• With 40 ATC

• With Spindle Through Coolant

Ready to boost your production capacity? Chat with us directly via WhatsApp for more detail

Ideal Application

• Machining large molds, dies, and heavy structural components

• Boring and milling oversized or high-weight workpieces

• Producing machine beds, turbines, industrial frames, and railway equipment

• Handling custom, large-format, or high-tolerance jobs for job shops and major manufacturers
