What happens when a 5-ton gearbox housing needs micron-level accuracy?

One small misalignment can mean rejected components, expensive rework, or production delays. Machining large, heavy, box-type components has always been a serious challenge in heavy engineering industries.

This is where a cnc horizontal borer becomes critical. Unlike standard machines, a horizontal boring machine is specifically designed to handle heavy-duty components with deep internal bores and complex geometries without compromising precision.

From power plants to oil & gas facilities, a heavy duty boring machine plays a central role in ensuring structural alignment and machining accuracy.

What Is a CNC Horizontal Borer?

A cnc horizontal borer is a precision machining system designed to enlarge, finish, and machine internal holes in large, heavy workpieces. Unlike conventional vertical mills, the spindle is mounted horizontally, allowing it to reach deep into box-type components and structural frames.

Think of it as the heavy-duty specialist of the machine shop. While other machines handle smaller parts or surface work, horizontal borers tackle the components that form the backbone of industrial infrastructure like pump bodies, engine blocks, machine frames, and turbine casings.

Modern CNC systems can perform multiple operations in a single setup:

• Precision boring and reaming
• Drilling operations
• Face and contour milling
• Thread tapping

The CNC automation ensures repeatability and accuracy that manual systems simply cannot match, especially critical when working with components where a single mistake could mean scrapping thousands of dollars in castings.

How a CNC Horizontal Boring Machine Works

At its core, the horizontal borer operates with a horizontally aligned spindle that rotates the cutting tool while the workpiece sits on a movable table. This configuration might seem simple, but it enables remarkable versatility.

1. The Three-Axis Dance

Z-Axis (Spindle Movement): The boring head extends horizontally into the workpiece, reaching deep internal features that would be impossible with vertical configurations.

2. X & Y Axes (Table Movement):

The table positions the component precisely under the spindle, allowing multi-face machining without repositioning.

3. CNC Control:

Modern systems manage feed rates, depths, speeds, and positioning with programmed precision, eliminating the variability that comes with manual operation.

Here’s what sets these machines apart: you can machine multiple surfaces; top, sides, internal bores in a single setup. This drastically reduces the alignment errors that occur when you move a 5-ton casting between different machines.

Boring vs Milling: What’s the Difference?

While these terms are often used interchangeably, they serve distinct purposes:

Boring enlarges and finishes existing holes to precise diameters with tight tolerances, think of refining a pre-cast hole to exact specifications.

Milling removes material from external surfaces, whether flat faces or complex contours.

Many modern machines operate as combination boring-milling centers, handling both operations efficiently. This versatility is why they’re often the centerpiece of heavy fabrication shops.

Types of CNC Horizontal Borers

Not all horizontal borers are created equal. The right type depends entirely on your component size and production requirements.

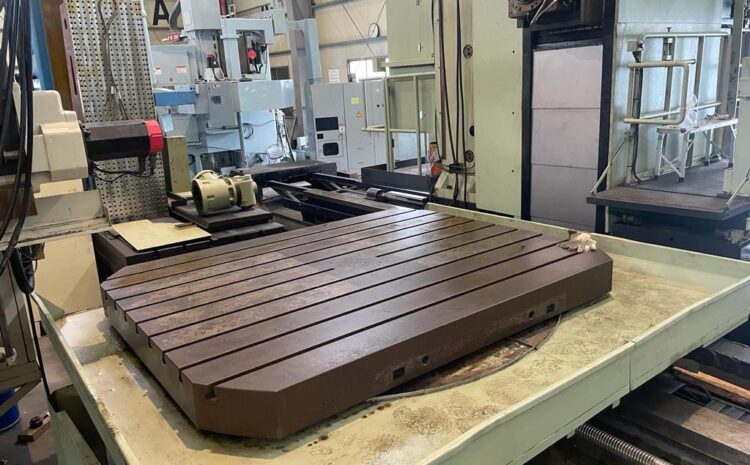

Table-Type Configuration

Best suited for medium to large components, table-type machines feature either fixed or rotary tables. The rotary table is particularly valuable, it allows you to machine multiple faces without unclamping the workpiece.

Ideal applications:

• Gearbox housings up to 3 meters
• Pump and valve bodies
• Medium industrial casings
• Machine tool components

The rotary function means you can bore the main shaft hole, rotate 90 degrees, and machine mounting faces, all while maintaining perfect alignment between features.

Floor-Type Configuration

When components exceed what a table can reasonably hold, floor-type machines step in. These heavy-duty systems feature a movable column and floor-mounted structure capable of handling truly massive workpieces.

Typical capacity:

• Components weighing 10-50+ tons
• Workpieces up to 10 meters in length
• Structural steel fabrications
• Power generation equipment

Industries manufacturing wind turbine hubs, ship engine components, or large structural frames rely almost exclusively on floor-type machines.

Applications of CNC Horizontal Borers

These machines aren’t general-purpose tools, they’re specialists that solve specific manufacturing challenges in heavy industry.

Key Industries

1. Power Generation: Turbine casings, generator housings, and steam chest bodies all require the deep, precise boring that only horizontal machines can deliver.

2. Oil & Gas: Valve bodies, wellhead equipment, and pressure vessel components demand both size capacity and precision.

3. Heavy Fabrication: Structural bases, machine frames, and custom industrial equipment often feature complex internal geometries.

4. Mining & Cement: Crusher housings, mill bodies, and heavy-duty equipment frames take significant abuse and require precise manufacturing.

5. Defence & Railways: From naval components to railcar trucks, these sectors need both precision and the ability to handle oversized parts.

Example- Consider a gearbox housing for a wind turbine. It might measure 2.5 meters across, weigh 8 tons, and require a main bore accurate to within 0.02mm. The mounting faces need perpendicularity within 0.05mm to the bore centerline.

On a horizontal borer with a rotary table, you can:

1. Bore the main shaft housing
2. Rotate and machine the mounting face
3. Drill and tap mounting holes
4. Face secondary surfaces

All in one setup, maintaining perfect geometric relationships. Try doing that by moving the casting between multiple machines.

Why do heavy engineering companies prefer a cnc horizontal borer?

The shift from conventional to CNC horizontal boring isn’t just about automation, it’s about capability.

Measurable Advantages

1. Precision at Scale: Achieving 0.02mm tolerances on a 5-meter component isn’t about operator skill anymore, it’s about machine capability and program accuracy.

2. Repeatability: Once programmed, the machine produces identical results across 10 or 1,000 pieces. This consistency is impossible with manual systems.

3. Reduced Setup Time: Complex parts that once required jigs, fixtures, and careful indicator work can now be positioned and probed automatically.

4. Operator Independence: Instead of relying on master machinists with decades of experience, you can train competent operators to run proven programs.

5. Multi-Operation Efficiency: Boring, drilling, milling, and tapping in one setup eliminates the time and error associated with moving large components.

The productivity gains are substantial. What might have taken 3-4 days of careful manual work can often be completed in a single shift with CNC automation.

CNC Horizontal Borer vs Vertical Boring Machine

Many buyers ask: Which is better- horizontal or vertical? The answer depends on the component type.

Feature	CNC Horizontal Borer	Vertical Boring Machine
Spindle Orientation	Horizontal	Vertical
Ideal For	Box-type components	Large circular parts
Deep Bore Capability	Excellent	Limited
Typical Industries	Heavy engineering	Automotive & round parts

A horizontal boring machine is typically preferred for heavy, box-type structures where deep internal boring is required.

CNC Horizontal Borer vs Conventional Horizontal Borer

For shops still running conventional horizontal borers, the CNC upgrade represents a significant decision.

What you gain with CNC:

• 3-5x faster cycle times on complex parts
• Consistent quality regardless of operator experience
• Ability to run lights-out or minimally attended
• Better suitability for batch production
• Programming flexibility for variant components

What you lose:

• Simplicity of mechanical controls
• Lower upfront capital cost
• Independence from software and electronics

For high-mix, low-volume job shops, conventional machines still have a place. But for any operation running batches, pursuing tight tolerances, or planning for future growth, CNC systems offer measurable returns.

The Used Machine Opportunity

Not every shop needs or can afford a new CNC horizontal borer. Used machines represent a legitimate path to capability expansion.

When Used Machines Make Sense

1. Capital Efficiency: A well-maintained used machine might cost 40-60% of new, freeing capital for tooling, training, or additional equipment.

2. Faster Availability: New machines can have 6-18 month lead times. Quality used equipment can be inspected, purchased, and installed in weeks.

3. Capacity Expansion: If you’re taking on larger projects or need redundancy, used machines fill the gap without overextending finances.

4. Job Work Operations: Shops doing contract machining often find used equipment provides the flexibility to bid on diverse projects.

The Risk Factors

Used machines are not all equal. A poorly maintained machine is expensive regardless of purchase price.

Critical inspection points:

• Spindle runout and taper condition
• Way wear and axis backlash
• CNC control functionality and parts availability
• Service history and maintenance records
• Geometric accuracy through test pieces

Insist on trial runs with your own test programs. Review inspection reports from qualified technicians. And if possible, see the machine running production work, not just jogging axes in demo mode.

A properly vetted used machine can deliver years of reliable service. A hasty purchase can become an expensive rebuilding project.

Understanding Price Factors

When evaluating horizontal borers new or used prices can vary by 3-5x for seemingly similar specifications.

What Drives Cost?

1. Machine Size: A machine with 130mm spindle and 1500mm table costs far less than a 200mm spindle with 4000mm table capacity.

2. Control System: Fanuc, Siemens, and Heidenhain controls come at premium pricing compared to domestic or older systems.

3. Manufacturer Origin: European and Japanese machines typically command higher prices than Chinese or Indian alternatives.

4. Included Equipment: Rotary tables, extended boring bars, tool changers, and probe systems add significant value.

5. Condition (Used Machines): A machine with documented maintenance, recent rebuilds, and low hours commands premium pricing for good reason.

Price Ranges (General Reference)

• Small Table-Type (used): $50,000 – $150,000
• Medium Table-Type (used): $150,000 – $400,000
• Large Floor-Type (used): $400,000 – $1,500,000+
• New Machines: Add 50-150% to comparable used pricing

Remember, the purchase price is only part of the equation. Installation, tooling, training, and maintenance must all factor into total cost of ownership.

Pre-Purchase Checklist

Whether buying new or used, these evaluation steps protect your investment.

Technical Verification

Spindle Assessment:

• Runout measurements at taper and face
• Bearing condition and noise
• Pull stud retention force
• Taper wear patterns

Axis Performance:

• Backlash on all axes
• Way condition and lubrication
• Ball screw wear
• Positioning repeatability

Control System:

• Software version and compatibility
• Backup availability
• Alarm history
• Parts availability from manufacturer

Geometric Accuracy:

• Perpendicularity of axes
• Spindle alignment to table movement
• Table flatness and parallelism
• Test piece results

Documentation Review:

• Original purchase records
• Service and maintenance logs
• Rebuild history and component replacements
• Crash or damage history
• Original manufacturer specifications

Operational Testing:

Don’t accept hand-waving about machine condition. Insist on:

• Trial boring operations
• Finish quality inspection
• Tolerance verification on test pieces
• Full axis travel demonstration
• Tool change and probe cycle testing

A seller confident in their machine will welcome thorough inspection. Resistance to testing should raise immediate concerns.

Making Your Decision

Selecting a horizontal borer isn’t about finding the cheapest option, it’s about matching capability to requirements while managing risk and investment.

Questions to Answer First

1. What’s your largest anticipated component in the next 5 years?
2. What tolerances do your applications require?
3. Is this a primary production machine or backup capacity?
4. Do you have in-house CNC programming capability?
5. What’s your budget for the machine, tooling, and installation combined?
6. Do you need manufacturer support or are you comfortable with independent service?

Your answers to these questions should guide machine selection more than any single specification or price point.

Final Thoughts

CNC horizontal borers represent significant investments, but for shops machining large, precision components, they’re often irreplaceable. The ability to handle multi-ton workpieces while maintaining tight tolerances and geometric relationships makes them essential in heavy engineering.

Whether you choose new or used, table-type or floor-type, the key is thorough evaluation aligned with your actual production needs. A well-selected machine becomes a profit center; a poor choice becomes an expensive lesson.

Take time to evaluate options carefully, conduct thorough inspections, and choose equipment that matches both current requirements and growth trajectory. The right horizontal borer isn’t just a machine purchase, it’s a capability investment that shapes what your shop can produce for the next decade or more.
