Why Vertical Turning Lathe Excel At Heavy-Duty Machining?
If you’ve ever walked across a shop floor where huge castings or turbine rings are being machined, you’ve probably noticed one thing stability is everything. That’s where the vertical turning lathe comes in. For manufacturers, buyers, and maintenance teams handling oversized workpieces, it’s often the most reliable choice.
So, what is a VTL machine in the simplest sense? It’s a type of lathe where the spindle is vertical, and the workpiece rests on a faceplate instead of being held horizontally. This vertical setup may sound like a small design change, but it makes a massive difference. By letting gravity assist the machining process, a VTL machine achieves more stability, less vibration, and higher material removal rates. In other words, it’s built for the heavy stuff.
Shops that work with turbine housings, wind tower flanges, or brake discs know this well that a CNC vertical turning lathe can transform how efficiently operators machine these massive parts. At EngiMach, we see it every day when the job is large, heavy, and critical, a vertical lathe simply outperforms its horizontal counterpart.
What is a Vertical Turning Lathe (VTL)?
Let’s start with the basics. A vertical turning lathe is a machine tool designed to hold and rotate large workpieces on a vertical axis. The component is clamped onto a circular faceplate, and the cutting tools approach it from the side.
Unlike a horizontal turning lathe, where long shafts or bars are mounted between centers, the VTL is made for large-diameter, short-length parts that are too heavy to hold securely in a horizontal orientation.
There are several types of Vertical Turning Lathe to suit different workloads:
- Single-column VTLs – Compact, versatile, and perfect for mid-sized parts.

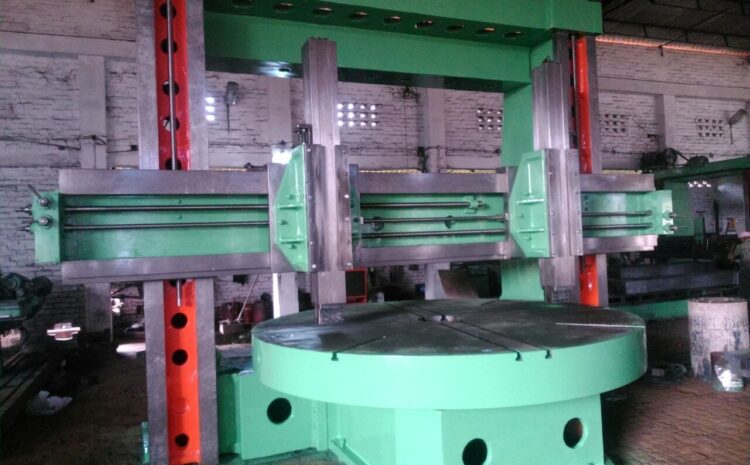

- Double-column (portal) VTLs – Massive and rigid, ideal for extremely heavy or oversized workpieces.
- Vertical turret lathes – Equipped with tool turrets to speed up production.
- Vertical boring mills – Closely related machines focused on boring large internal diameters.
So when someone asks what is a VTL machine, the answer is straightforward: it’s the go-to solution for machining large, heavy components with precision and control.
The Physics Advantage: Gravity, Rigidity and Why That Matters for Heavy Machining?
At first glance, a vertical lathe machine may just look like a lathe turned upright. But the orientation makes all the difference, especially when dealing with tons of raw material.
1. Gravity-assisted holding
On a vertical turning lathe, the workpiece rests against the faceplate under its own weight. That means less clamping force is needed to keep it stable. For operators, this translates into a safer setup and fewer worries about parts shifting mid-cut.
2. Rigidity and vibration control
The column and bed of a VTL machine are built to absorb force. Unlike horizontal lathes, where long workpieces can flex and chatter, the VTL’s short overhang keeps tools steady. The result: fewer vibrations, smoother finishes, and longer tool life.
3. Torque and spindle architecture for heavy MRR
When you’re machining a component that’s several meters wide, high RPMs don’t help. What you need is torque. CNC vertical turning lathes are designed with low-speed, high-torque spindles that remove material aggressively while keeping the process under control.
Design Features That Make Vertical Turning Lathe Ideal for Heavy Parts
Every element of a vertical turning lathe is designed with oversized components in mind.
1. Large faceplate and hydrostatic bearings for extreme loads
The faceplate on a VTL can span several meters. Hydrostatic bearings support it and allow smooth rotation, even when it carries extreme weight which is something horizontal machines can’t handle as efficiently.
2. Column, cross-rail, and dual-column designs for stiffness
When parts get heavier, stiffness becomes non-negotiable. Double-column vertical turret lathes bring unmatched stability, supporting cross-rails and enabling simultaneous tool operation. This not only boosts accuracy but also cuts down cycle time.
3. Powerful low-speed, high-torque spindles and turrets
These machines are built to cut deep. Reinforced tool turrets combined with torque-heavy spindles mean operators can trust the machine to handle aggressive passes on hardened materials.
4. Integration options: CNC, live tooling, and automation
Modern cnc vertical turning lathe machines don’t just turn. With live tooling, gantry loaders, and automation-ready controls, they reduce manual handling, improve repeatability, and allow lights-out machining which is a big win for productivity.
Operational Benefits on the Shop Floor
Beyond design, what really matters is how a VTL machine changes day-to-day operations. Here’s what supervisors and operators usually notice first:
- Faster setups for large castings – Gravity helps seat parts quickly, cutting down on re-clamps.
- Better chip flow and coolant management – Chips naturally fall away from the cutting zone, making coolant delivery more effective.
- Lower fixturing costs and safer handling – Heavy horizontal setups can require expensive custom fixtures. A vertical turning lathe makes setups simpler and safer.
- Multi-process capability – With CNC vertical turning lathes, turning, boring, and milling can all happen in one setup, significantly reducing cycle time.
Real-world Applications and Part Types
- Automotive – Machining large brake discs, wheel hubs, and engine components.
- Power generation – Creating turbine rings, rotors, and casings for wind, steam, and gas turbines.
- Wind energy – Tower flanges and bearing rings.
- Oil and gas –Machining large flanges, valve bodies, and components for drilling rigs.
- Heavy equipment – Producing large gears, bearings, rolls, and drums for mining, construction, and agricultural machinery.
A classic example of a vertical turning lathe application is machining a large wind turbine hub. These hubs are massive, heavy castings that demand precision turning on multiple surfaces. On a vertical lathe machine, operators can often finish the hub in one setup instead of multiple. This reduces operator involvement and slashes machining steps. Similarly, in automotive plants, CNC vertical turning lathes allow both sides of a brake disc to be machined in one pass, improving consistency while saving hours of production time.
Buying Considerations: New vs Used Vertical Turning Lathe, Price Signals, and Where to Source
One of the most common questions we hear at EngiMach is whether to go for a new or used vertical turning lathe machine. The answer depends on workload, budget, and how soon the machine needs to be put to work.
New VTLs:
- The Latest Tech: You get the most recent advancements and features.
- Peace of Mind: Comes with full factory warranties and support.
- The Catch: High price tags that can strain a budget.
Used VTLs:
- Incredible Value: A well-maintained used vertical turning lathe offers a significant return on investment at a fraction of the cost.
- Proven Durability: These machines are built to last and can have decades of productive life left.
- Smart Investment: The money saved can be reinvested into other areas of your business or used to upgrade the machine’s control systems.
The vertical turning lathe price varies widely depending on size and configuration. Smaller used units may cost a fraction of a brand-new double-column CNC system. This is where EngiMach steps in where we help shops find dependable used vertical turning lathe machines that match their budget and production needs.
Maintenance and Best Practices for Heavy-use VTLs
A VTL machine is a long-term workhorse, but like any piece of equipment, it needs consistent care.
Key practices include:
- Keeping hydrostatic bearings and slides lubricated.
- Verifying spindle torque regularly.
- Checking table and faceplate runout.
- Inspecting hydraulic and pneumatic clamps for reliability.
- Maintaining coolant and chip removal systems.
When you buy a used vertical turning lathe, you invest in a machine that has already proven itself. To keep it running for years, you need to maintain it consistently.
This is where a good service plan, including things like regular checks and monitoring, is so important. By staying on top of the maintenance, you can catch little hiccups before they turn into major breakdowns. It’s all about protecting your investment and keeping that machine running strong and reliable, just like it was built to do.
Conclusion
When you’re faced with a project involving large-diameter, heavy, or unwieldy parts, a vertical turning lathe leverages the fundamental power of gravity, provides unmatched rigidity, and is built with the torque and structural integrity needed for demanding applications, which makes it the clear choice for industries from automotive to energy.
Looking for a reliable used VTL? Checkout EngiMach’s current stock or request a quote today to find the right machine that suits your daily workloads.
FAQs
Q1: What is a VTL machine?
A VTL machine is a vertical turning lathe designed to machine heavy, large-diameter components by clamping them on a vertical faceplate.
Q2: Is a vertical lathe better than a horizontal lathe for heavy parts?
For oversized and heavy components, yes. A vertical lathe machine offers better stability, easier handling, and safer loading than a horizontal turning lathe.
Q3: How much does a vertical turning lathe cost?
The vertical turning lathe price can vary widely. It’s price depends on size, features, and whether it’s new or used. Smaller units are more affordable, while large double-column CNC systems are premium investments.
